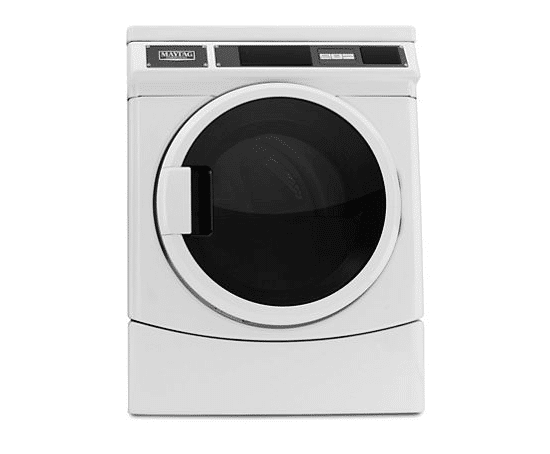

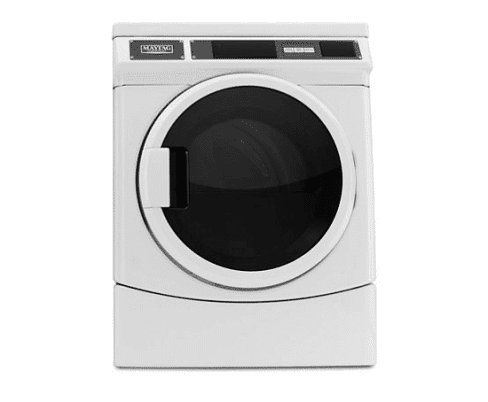

Maytag MDE/MDG28PRCYW
MICROPROCESSOR CONTROLS: Provides simple programming options for owners: including adjustable cycle price, cycle time, diagnostics and vend count.
TURBOVENT™ DRYER TECHNOLOGY: Additional blower wheel provides exceptional performance in long vents. High airflow reduces dry time.
PORCELAIN-ENAMEL TOP: Durable finish for high-use environments.
FRONT ACCESS PANEL: Provides easy access for Self Service.
CAPACITY: Extra-Large 6.7 cu. ft. Capacity
CLOTHESPIN™ APP BY MAYTAG COMPATIBLE: Customers can use their smartphones to pay fortheir laundry, remotely check for available machines.
5 Year Limited Warranty – All Parts Covered
Description
| MODELS | MDE28PDCYW | MDG28PDC | MDE28PDCZW | |
| Fuel Type | Electric | Gas | Electric (Canada) | |
| CAPACITY | ||||
| Cylinder Volume — cu. ft. (liters) | 6.7 (190) | 6.7 (190) | 6.7 (190) | |
| Cylinder Diameter — in. (mm) | ||||
| Cylinder Depth — in. (mm) | ||||
| DIMENSIONS | ||||
| Width — in. (mm) | 27 (686) | 27 (686) | 27 (686) | |
| Depth — in. (mm) | 29 (737) | 29 (737) | 29 (737) | |
| Height — in. (mm) | 45.75 (1,162)* | 45.75 (1,162)* | 45.75 (1,162)* | |
| Door Opening — in. (mm) | 18.25 (464) | 18.25 (464) | 18.25 (464) | |
| Exhaust Duct Diameter — in. (mm) | 4 (100)** | 4 (100)** | 4 (100)** | |
| CRATED DIMENSIONS | ||||
| Crated Width — in. (mm) | 29.06 (738.12) | 29.06 (738.12) | 29.06 (738.12) | |
| Crated Depth — in. (mm) | 30.5 (775) | 30.5 (775) | 30.5 (775) | |
| Crated Height — in. (mm) | 45.63 (1159) | 45.63 (1159) | 45.63 (1159) | |
| APPROXIMATE WEIGHT | ||||
| Uncrated — lb (kg) | 147 (67) | 150 (68) | 147 (67) | |
| Crated — lb (kg) | 160 (73) | 163 (74) | 160 (73) | |
| ELECTRICAL REQUIREMENTS | ||||
| Voltage | 240V – 60Hz | 120V – 60Hz | 240V – 60Hz | |
| Breaker/Fuse — amps | 30 | 15 | 30 | |
| Airflow — CFM (CMM) | 215 (6.1) | 230 (6.5) | 215 (6.1) | |
| Electric Heating Element (watts) | 5,600 | N/A | 5,250 | |
| Gas Rating — BTU/hr (kcal/hr) | N/A | 24,000 (6,048) | N/A | |
| Gas Inlet Size — in. | N/A | 3/8 N.P.T. | N/A | |
| Motor Size — HP (kW) | 1/3 (.25) | 1/3 (.25) | 1/3 (.25) | |
| Average Hot Water Usage Warm Water Cycle — gallons (liters) | .71 (2.69) | .71 (2.69) | 8.5 | 8.5 |
| Average Hot Water Usage Hot Water Cycle — gallons (liters) | 2.71 (10.26) | 2.71 (10.26) | 1.6 | 1.6 |
