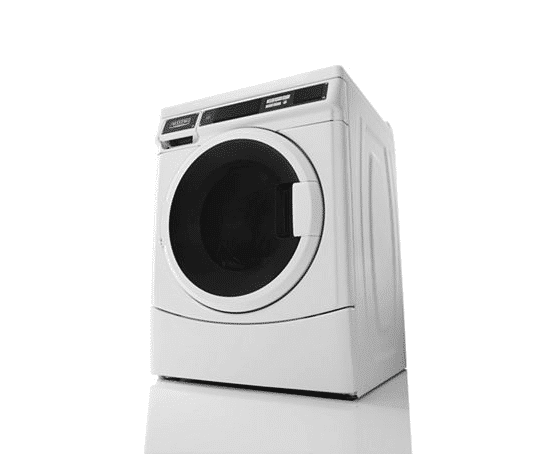

Maytag MHN33PRCWW

Commercial front-load washer, coin-ready

Advanced Spin Technology

MHN33PDCW | White

Categories: ,

Description

WASHER SPECIFICATIONS
MODEL MHN33PR
MOTOR ½ (.37)
Variable-Speed, Reversible, Thermoprotected, High-Efficiency, Controlled Induction Yes
Wash — HP (kW) .09 (.07)
Extract — HP (kW) .54 (.40)
Average Energy Consumption Per Cycle (kWH) .054
CAPACITY
Cylinder Volume — cu. ft. (liters) 3.1 (88)
Cylinder Diameter — in. (mm) 21.6 (547)
Cylinder Depth — in. (mm) 13.4 (341)
WATER INLET HOSE
Ft. (m) 4 (1.22)
DRAIN HOSE
Ft. (m) 6 (1.83)
APPROXIMATE WATER USAGE — GALLONS (LITERS)
Average Hot Water Usage, Hot Water Cycle 2.71 (10.26)
Average Hot Water Usage, Warm Water Cycle .71 (2.69)
Average Total Water Usage Per Cycle* 10.71 (40.5)
Modified Energy Factor (MEFJ2)* 2.2
Integrated Water Factor (IWF)* 3.5
ELECTRICAL RATING
Domestic Model — voltage 120V / 60Hz
BREAKER / FUSE MIN. REQUIREMENTS
Domestic Model — amps 15
WASH SPEED — RPM 40
EXTRACT SPEED — MAX RPM / MAX G-FORCE 1,000 / 300
WATER SUPPLY PRESSURE
Psi (bar) 20 – 100 (1 – 8)
ADJUSTABLE LEVELING LEGS Yes
COLOR White
APPROXIMATE WEIGHT
Crated — lbs. (kg) 244 (111)
Uncrated — lbs. (kg) 235 (107)
DIMENSIONS
Width — in. (mm) 27 (686)
Depth — in. (mm) includes handle 28.81 (732)
Height — in. (mm) 37.81 (961)
Door Opening Diameter — in. (mm) 14.25 (362)
ADA-Compliant with Optional Pedestal Yes
OPTIONAL PEDESTAL ADD:
Height — in. (mm) 2.75 (70)
*Based on 2018 United States DOE J2 Testing with factory preset cycles.  Dimensions are for planning purposes only. See specific instructions for proper installation. Because of continuous product improvement, Maytag reserves the right to change specifications without notice.
