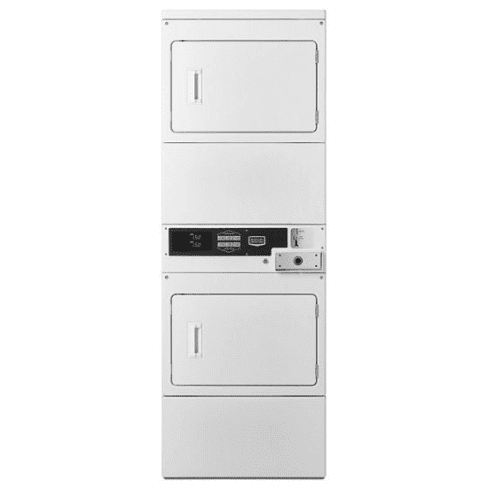

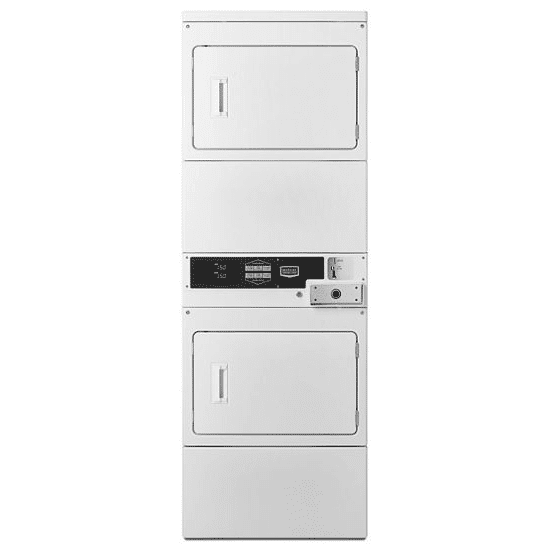

Maytag MLE/MLG26PDBYW
Extra Large 7.4 cu. ft. Capacity The extra-large, 7.4-cu.-ft. capacity allows for large loads to be dried efficiently and effectively, delivering an optimal drying experience for end users and maximizing facility productivity. Accu Trac™ Audit System with Two-Way Data Communication The Accu Trac® Audit System allows owners to communicate with the microprocessor controls, so they can set up, monitor, or check the status of a machine quickly. Advanced Computer Trac® Controls Allow For Easy Programming Four-Roller Suspension with Permanently Lubricated Bearings Heavy-duty roller suspension and permanently lubricated bearings are built to provide consistent and dependable drying, cycle after cycle. Blower Guard The blower guard reduces service calls, helping to keep machines running at optimal turns. Front Access Panel The front-access panel streamlines self-service by providing quick entry to the motor, transmission, and wash tub—minimizing downtime and helping to keep the machine running and generating revenue. 5-Year Limited Warranty–All Parts Covered These reliable dryers are backed by a five-year limited warranty-all parts covered.
Description
MODELS | MLE26 (PD/PR) MLE27 (PD) MLE27 (PN) | MLG26 (PD/PR) MLG27 (PD) MLG27 (PN) | MLE26 (PD/PR) MLE27 (PD) MLE27 (PN) |
Fuel Type | Electric | Gas | Electric (Canada) |
CAPACITY | |||
Cylinder Volume — cu. ft. (liters) | 7.4 (209.5) | 7.4 (209.5) | 7.4 (209.5) |
Cylinder Diameter — in. (mm) | 26.26 (667) | 26.26 (667) | 26.26 (667) |
Cylinder Depth — in. (mm) | 23.2 (590) | 23.2 (590) | 23.2 (590) |
DIMENSIONS | |||
Width — in. (mm) | 27 (686) | 27 (686) | 27 (686) |
Depth — in. (mm) | 29 (737) | 29 (737) | 29 (737) |
Height — in. (mm) | 74.25 (1,886) | 74.25 (1,886) | 74.25 (1,886) |
Door Opening — in. (mm) | 20.25 (514) | 20.25 (514) | 20.25 (514) |
Exhaust Duct Diameter — in. (mm) | 4 (101.6)* | 4 (101.6)* | 4 (101.6)* |
CRATED DIMENSIONS | |||
Crated Width — in. (mm) | 28.7 (730) | 28.7 (730) | 28.7 (730) |
Crated Depth — in. (mm) | 33.4 (848) | 33.4 (848) | 33.4 (848) |
Crated Height — in. (mm) | 79.1 (2008) | 79.1 (2008) | 79.1 (2008) |
APPROXIMATE WEIGHT | |||
Uncrated — lb (kg) Coin Drop & Coin Slide Models | 272 (123.4) | 275 (124.7) | 275 (124.7) |
Uncrated — lb (kg) Card Ready & Non-Vend Models | 250 (113.4) | 250 (113.4) | 250 (113.4) |
Crated — lb (kg) Coin Drop & Coin Slide Models | 294 (133.4) | 294 (133.4) | 294 (133.4) |
Crated — lb (kg) Card Ready & Non-Vend Models | 275 (124.7) | 275 (124.7) | 275 (124.7) |
ELECTRICAL REQUIREMENTS | |||
Voltage | 240V – 60Hz | 120V – 60Hz | 240V – 60Hz |
Breaker/Fuse — amps | 30 | 15 | 30 |
Airflow — CFM (CMM) | 200 (5.7) | 215 (6.1) | 215 (6.1) |
Electric Heating Element (watts) | 5,600 | N/A | 5,250 |
Gas Rating — BTU/hr (kcal/hr) | N/A | 22,000 (5,544) | N/A |
Gas Inlet Size — in. | N/A | 3/8 N.P.T. | N/A |
Motor Size — HP (kW) | 1/3 (.25) | 1/3 (.25) | 1/3 (.25) |
