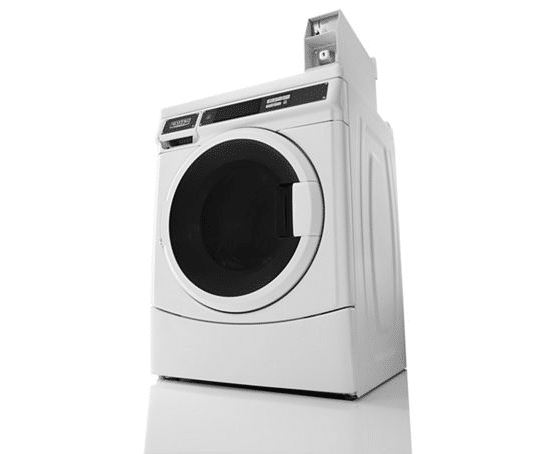

Maytag MHN33PDCWW
Maytag® Commercial Single Load, Energy Advantage ™ Front-Load Washer
Description
| MODELS | MHN33 (PD) | MHN33 (PR) |
| PAYMENT CONFIGURATION | COIN DROP EQUIPPED | CARD READER READY/NON-VEND |
| CAPACITY | ||
| Cylinder Volume — cu. ft. (liters) | 3.1 (88) | 3.1 (88) |
| Cylinder Diameter — in. (mm) | 21.6 (547) | 21.6 (547) |
| Cylinder Depth — in. (mm) | 13.4 (341) | 13.4 (341) |
| DIMENSIONS | ||
| Depth — in. (mm) | 28.81 (732) | 28.81 (732) |
| Width — in. (mm) | 27 (686) | 27 (686) |
| Height — in. (mm) | 44.68 (1,134)* | 37.81 (961) |
| Door Opening — in. (mm) | 14.25 (362) | 14.25 (362) |
| CRATED DIMENSIONS | ||
| Crated Width — in. (mm) | 29 (736.6) | 29 (736.6) |
| Crated Depth — in. (mm) | 33-½ (850.9) | 33-½ (850.9) |
| Crated Height — in. (mm) | 48 ½ (1,231.9) | 40 ½ (1,028.7) |
| APPROXIMATE WEIGHT | ||
| Uncrated — lb (kg) | 245 (111) | 235 (107) |
| Crated — lb (kg) | 254 (115) | 244 (111) |
| ELECTRICAL REQUIREMENTS | ||
| Voltage | 120V | 120V |
| Breaker/Fuse — Amps | 15 | 15 |
| WATER INLET HOSE/DRAIN HOSE | ||
| Operating Pressure — psi (bar) | 20–100 (1-8) | 20–100 (1-8) |
| Inlet Hose Length — ft (m) | 4 (1.22) | 4 (1.22) |
| Drain Hose Length — ft (m) | 6 (1.83) | 6 (1.83) |
| APPROXIMATE WATER USAGE | ||
| Average Total Water Usage Per Cycle — gallons (liters) | 10.71 (40.50)** | 10.71 (40.50)** |
| Average Hot Water Usage Warm Water Cycle — gallons (liters) | .71 (2.69) | .71 (2.69) |
| Average Hot Water Usage Hot Water Cycle — gallons (liters) | 2.71 (10.26) | 2.71 (10.26) |
