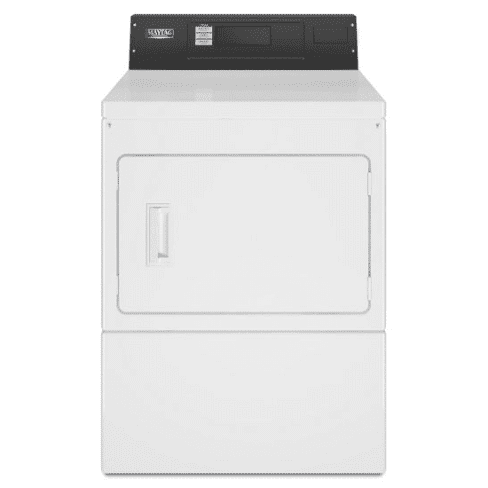

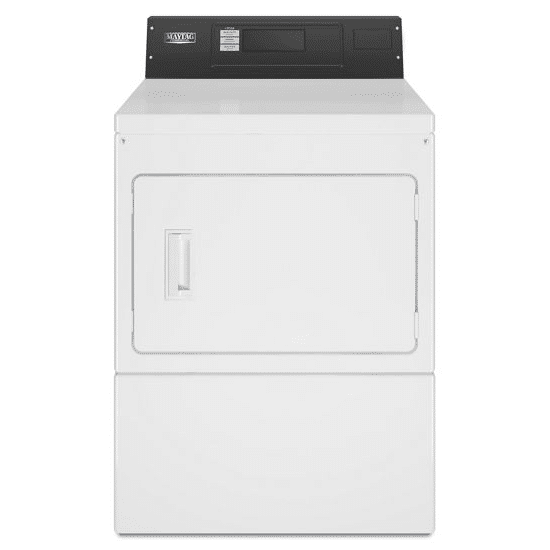

Maytag MDE/MDG20PRAYW Commercial Electric Dryer
Commercial electric super-capacity dryer, card reader-ready or non-coin MDE20PRAYW | White Get effective, efficient drying on loads of varying sizes with this super capacity, 7.4-cu.-ft. dryer. Featuring simple, easy-to-use controls that allow owners to easily set individual prices for every cycle, this dryer gives them power over their profits. Engineered for the durability owners require, the four-roller suspension and permanently lubricated bearings, porcelain top, and full-wrap console boost machine dependability and longevity. And because this powerful dryer is backed with a five-year limited warranty-all parts covered, you can see just how reliable a Maytag® machine is.
Description
MODELS COIN DROP/COIN SLIDE/CARD READER READY NON-VEND | MDE20 (PD/CS/PR) MDE20 (MN) | MDG20 (PD/CS/PR) MDG20 (MN) | MDE20 (PD/CS/PR) MDE20 (MN) |
FUEL TYPE | ELECTRIC | GAS | ELECTRIC (CANADA) |
CAPACITY | |||
Cylinder Volume — cu. ft. (liters) | 7.4 (210) | 7.4 (210) | 7.4 (210) |
Cylinder Diameter — in. (mm) | 26.26 (667) | 26.26 (667) | 26.26 (667) |
Cylinder Depth — in. (mm) | 23.2 (590) | 23.2 (590) | 23.2 (590) |
DIMENSIONS | |||
Width — in. (mm) | 27 (686) | 27 (686) | 27 (686) |
Depth — in. (mm) | 29.25 (743) | 29.25 (743) | 29.25 (743) |
Height — in. (mm) | 43 (1,092)* | 43 (1,092)* | 41 (1,042)* |
Door Opening — in. (mm) | 20.25 (514) | 20.25 (514) | 20.25 (514) |
Exhaust Duct Diameter — in. (mm) | 4 (101.6)** | 4 (101.6)** | 4 (101.6)** |
CRATED DIMENSIONS | |||
Crated Width — in. (mm) | 28.8 (731) | 28.8 (731) | 28.8 (731) |
Crated Depth — in. (mm) | 30.8 (782) | 30.8 (782) | 30.8 (782) |
Crated Height — in. (mm) | 44.65 (1,134) | 44.65 (1,134) | 44.65 (1,134) |
APPROXIMATE WEIGHT | |||
Uncrated — lb (kg) Coin Drop & Coin Slide Models | 125 (56.7) | 130 (59) | 125 (56.7) |
Uncrated — lb (kg) Card Ready & Non-Vend Models | 115 (52.2) | 120 (54.4) | 115 (52.2) |
Crated — lb (kg) Coin Drop & Coin Slide Models | 135 (61.2) | 140 (63.5) | 135 (61.2) |
Crated — lb (kg) Card Ready & Non-Vend Models | 125 (56.7) | 130 (59) | 125 (56.7) |
ELECTRICAL REQUIREMENTS | |||
Voltage | 240V | 120V | 240V |
Breaker/Fuse — amps | 30 | 15 | 30 |
Airflow — CFM (CMM) | 178 (6.10) | 183 (6.50) | 178 (6.10) |
Electric Heating Element (watts) | 5,600 | N/A | 5,250 |
Gas Rating — BTU/hr (kcal/hr) | N/A | 22,000 (5,544) | N/A |
Gas Inlet Size — in. | N/A | 3 ⁄ 8 N.P.T. | N/A |
Motor Size — HP (kW) | 1 ⁄ 3 (.25) | 1 ⁄ 3 (.25) | 1 ⁄ 3 (.25) |
