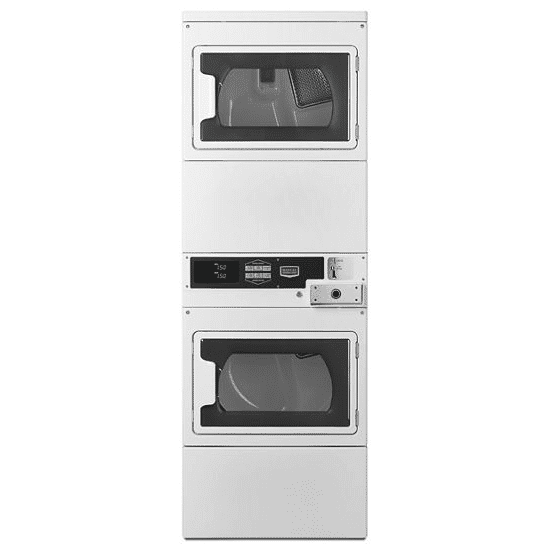

Maytag MLE/MLG27PDBYW
Commercial single load, super capacity stack dryer
MLE27PDBYW | White
Two pockets in the space of one. You can potentially double your dryer income and help eliminate waiting with two dryer pockets in the same floor space as one single-load dryer.
Description
| MODELS | MLE26 (PD/PR) MLE27 (PD) MLE27 (PN) | MLG26 (PD/PR) MLG27 (PD) MLG27 (PN) | MLE26 (PD/PR) MLE27 (PD) MLE27 (PN) |
| Fuel Type | Electric | Gas | Electric (Canada) |
| CAPACITY | |||
| Cylinder Volume — cu. ft. (liters) | 7.4 (209.5) | 7.4 (209.5) | 7.4 (209.5) |
| Cylinder Diameter — in. (mm) | 26.26 (667) | 26.26 (667) | 26.26 (667) |
| Cylinder Depth — in. (mm) | 23.2 (590) | 23.2 (590) | 23.2 (590) |
| DIMENSIONS | |||
| Width — in. (mm) | 27 (686) | 27 (686) | 27 (686) |
| Depth — in. (mm) | 29 (737) | 29 (737) | 29 (737) |
| Height — in. (mm) | 74.25 (1,886) | 74.25 (1,886) | 74.25 (1,886) |
| Door Opening — in. (mm) | 20.25 (514) | 20.25 (514) | 20.25 (514) |
| Exhaust Duct Diameter — in. (mm) | 4 (101.6)* | 4 (101.6)* | 4 (101.6)* |
| CRATED DIMENSIONS | |||
| Crated Width — in. (mm) | 28.7 (730) | 28.7 (730) | 28.7 (730) |
| Crated Depth — in. (mm) | 33.4 (848) | 33.4 (848) | 33.4 (848) |
| Crated Height — in. (mm) | 79.1 (2008) | 79.1 (2008) | 79.1 (2008) |
| APPROXIMATE WEIGHT | |||
| Uncrated — lb (kg) Coin Drop & Coin Slide Models | 272 (123.4) | 275 (124.7) | 275 (124.7) |
| Uncrated — lb (kg) Card Ready & Non-Vend Models | 250 (113.4) | 250 (113.4) | 250 (113.4) |
| Crated — lb (kg) Coin Drop & Coin Slide Models | 294 (133.4) | 294 (133.4) | 294 (133.4) |
| Crated — lb (kg) Card Ready & Non-Vend Models | 275 (124.7) | 275 (124.7) | 275 (124.7) |
| ELECTRICAL REQUIREMENTS | |||
| Voltage | 240V – 60Hz | 120V – 60Hz | 240V – 60Hz |
| Breaker/Fuse — amps | 30 | 15 | 30 |
| Airflow — CFM (CMM) | 200 (5.7) | 215 (6.1) | 215 (6.1) |
| Electric Heating Element (watts) | 5,600 | N/A | 5,250 |
| Gas Rating — BTU/hr (kcal/hr) | N/A | 22,000 (5,544) | N/A |
| Gas Inlet Size — in. | N/A | 3/8 N.P.T. | N/A |
| Motor Size — HP (kW) | 1/3 (.25) | 1/3 (.25) | 1/3 (.25) |
