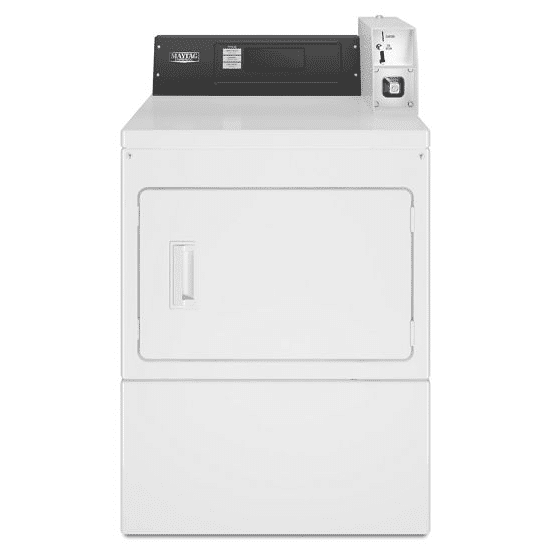

Maytag MDE/MDG20PDAYW
Commercial electric super-capacity dryer, coin drop Extra-Large Reversible Door MDE20PDAYW | White Get effective, efficient drying on loads of varying sizes with this super capacity, 7.4-cu.-ft. dryer. Featuring simple, easy-to-use controls that allow owners to easily set individual prices for every cycle, this dryer gives them power over their profits. Engineered for the durability owners require, the four-roller suspension and permanently lubricated bearings, porcelain top, and full-wrap console boost machine dependability and longevity. And because this powerful dryer is backed with a five-year limited warranty—all parts covered—you can see just how reliable a Maytag® machine is.
Description
| MODELS | MDE/MDG20PDAYW/DOMESTICMDE/MDG20PDAZW/CANADA |
| MOTORSIZE—HP(KW) | 1/3 (.25) |
| AIRFLOW—CFM MDE/MDG MODEL | 178/183 |
| ELECTRICHEATINGELEMENT(WATTS)DOMESTIC/CANADA | 5,600/5,250 |
| GASRATING—BTU/HR. (KCAL/HR.) | 22,000 (5,544) |
| GASINLETSIZE | 3/8 N.P.T. |
| CAPACITY | |
| Cylinder volume—cu. ft. (liters) | 7.4 (210) |
| Cylinder diameter—in. (mm) | 26.26 (667) |
| Cylinder depth—in. (mm) | 23.2 (590) |
| DIMENSIONS | |
| Width—in. (mm) | 27 (686) |
| Depth—in. (mm) | 29.25 (743) |
| Height—in. (mm) | 43 (1,092) |
| Door opening—in. (mm) | 20.25 (514) |
| Exhaust duct diameter—in. (mm) | 4 (101.6) |
| CRATEDDIMENSIONS | |
| Width—in. (mm) | 28.8 (731) |
| Depth—in. (mm) | 30.8 (782) |
| Height—in. (mm) | 44.65 (1,134) |
| APPROXIMATEWEIGHT | |
| Uncrated—lbs. (kg) MDE/MDG model | 125 (56.7)/130 (59) |
| Crated—lbs. (kg) MDE/MDG model | 135 (51.2)/140 (63.5) |
| ELECTRICALREQUIREMENTS | |
| Electrical rating—voltage/HZ MDE/MDG model | 240V/60Hz/120V/60Hz |
| Breaker/Fuse—amps MDE/MDG model | 30/15 |
| WARRANTY | 5-Year Limited |
| Dimensions are for planning purposes only. See specific instructions for proper installation. continuous product improvement, Maytag reserves the right to change specifications notice. |
