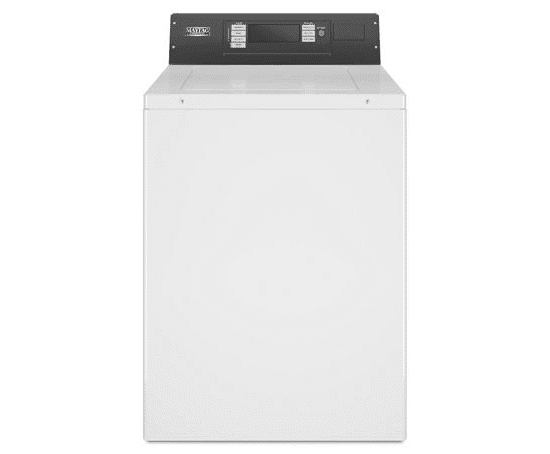

Maytag MAT20PRAWW
Commercial top-load washer, card reader-ready or non-coin operation Deep-water wash system MAT20PRAWW | White The machine’s deep-water wash and rinse cycles deliver exceptional clothes roll over and vigorous cleaning action that result in optimal wash performance. The 2.9-cu.-ft. washer is equipped with Intelligent Controls with M-Series Technology that put owners in charge of their profits and provide wash cycle flexibility to end users. Simple, step-by-step programming allows for customized setup, with the ability to price each cycle and option individually for maximized earnings. All of the components are protected by a heavy-duty cabinet, with an easily-removable front panel that helps streamline service calls. And because Maytag knows what dependability means to your owners, we back this reliable machine with a five-year limited warranty—all parts covered.
Description
| WASHER SPECIFICATIONS | |
| MODEL | MAT20PRAWW/DOMESTIC |
| MOTOR SIZE—HP (KW) | 1/2 (.37) |
| MODIFIED ENERGY FACTOR (MEF) | 1.89 |
| WATER FACTOR (WF) | 5.72 |
| APPROXIMATE WATER USAGE—GALLONS (LITERS) | |
| Average total water usage per cycle | 16.59 (62.8) |
| Average hot water usage, warm water cycle | .56 (2.1) |
| Average hot water usage, hot water cycle | 7.03 (26.6) |
| EXTRACT SPEED—MAX G-FORCE / MAX RPM | 144/700 |
| CAPACITY | |
| Cylinder volume—cu. ft. (liters) | 2.9 (82) |
| Cylinder diameter—in. (mm) | 20.8 (528) |
| Cylinder depth—in. (mm) | 23.8 (605) |
| DIMENSIONS | |
| Width—in. (mm) | 27 (686) |
| Depth—in. (mm) | 26 (660) |
| Height—in. (mm) | 42-1/2 (1,080) |
| Lid opening—in. (mm) | 17 (432) |
| CRATED DIMENSIONS | |
| Width—in. (mm) | 29 (737) |
| Depth—in. (mm) | 27.5 (699) |
| Height—in. (mm) | 49 (1,255) |
| APPROXIMATE WEIGHT | |
| Uncrated—lbs. (kg) | 146 (66.2) |
| Crated—lbs. (kg) | 164 (74.4) |
| ELECTRICAL REQUIREMENTS | |
| Electrical rating—voltage/HZ | 120/60 |
| Breaker/Fuse—amps | 15 |
| WATER INLET / HOSE | |
| Operating pressure PSI (bar) | 20–100 (1–8) |
| Inlet hose length—ft. (m) | 6 (1.8) |
| Drain hose length—ft. (m) | 4.2 (1.3) |
| WARRANTY | 5-Year Limited |
| Dimensions are for planning purposes only. See specific instructions for proper installation. continuous product improvement, Maytag reserves the right to change specifications notice. | |
